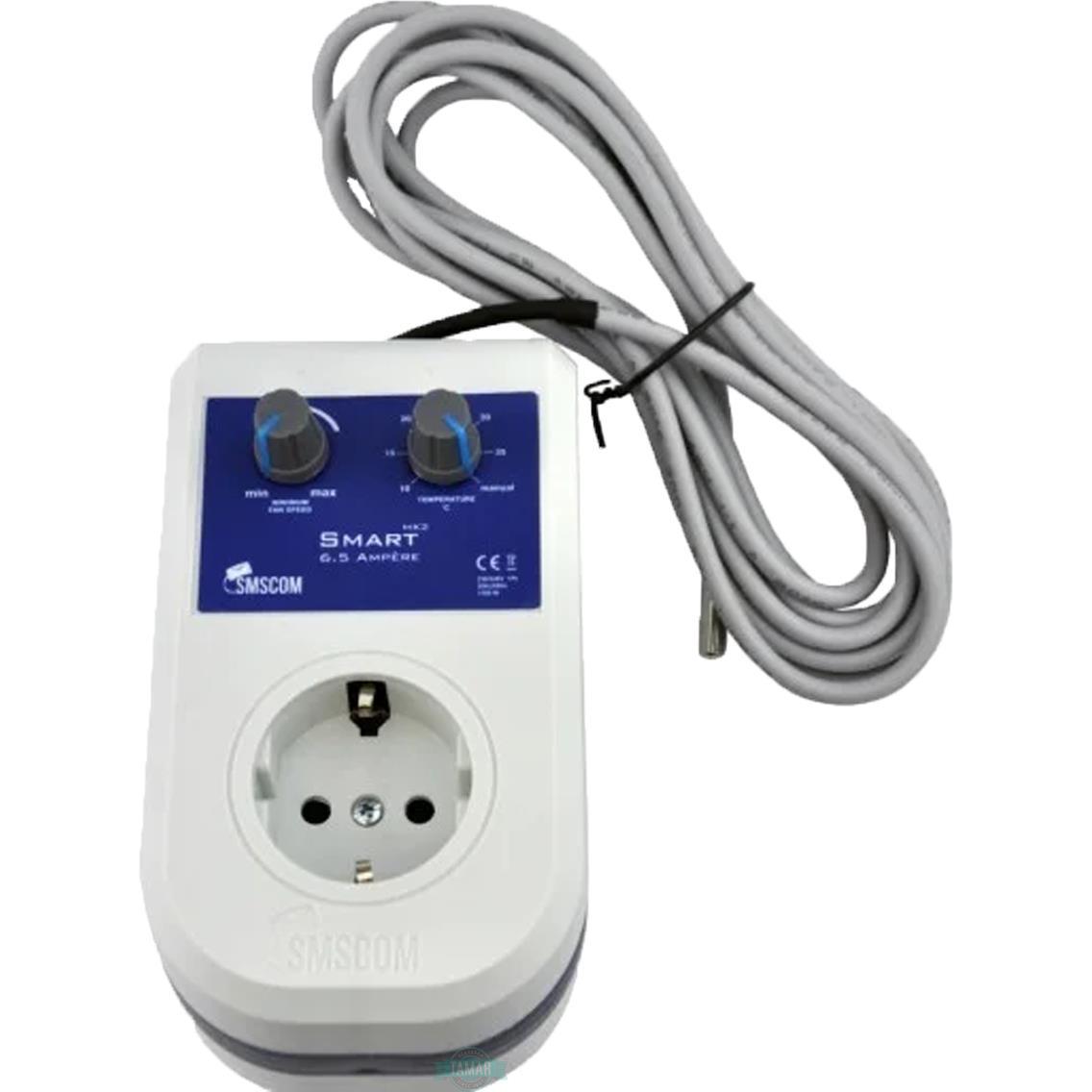

SMSCOM Smart Controller MK2 EU

The SMSCOM Smart Controller MK2 is a compact ventilation controller in a connector housing. Maximum current is 6.5 amps. The SMSCOM Smart Controller is electronically controlled, providing a simple and accurate method for getting the right temperature in your room (NTC connected). The SMSCOM Smart Controller continuously regulates the speed of your fans and maintains the correct temperature.

Functionality

The Smart Controller works with our Motion Flow software. Therefore, the Smart Controller reacts completely differently than other types of controllers.
When you first install the Smart Controller, the system will take 5 to 10 minutes to scan the room for a correct determination of the
fan speed is made possible.
After that, the controller knows exactly at what speed the fan has to rotate to maintain the desired temperature. From this point on, the Smart Controller automatically makes adjustments to the fan speed to ensure continuous maintenance of the set temperature.
The Smart Controller offers more than 60 different speed settings and thus smooth control of the fan speed as well as temperature control whose precision is not matched by any other type of controller.
In addition to highly touted temperature control, this new technology ensures reduced fan noise and longer fan life. The Smart Controller is ready to use right out of the box, so no wiring is required. Simply connect your fan and set the desired temperature and the minimum speed of the fan: the Smart Controller will take care of everything else.

Gebrauch of the Gerätes

1. Turn on the temperature sensor on the smart
1. Plug the Smart Controller into a power outlet.
2. Install the temperature sensor in the middle of the room.
3. Connect your fan to the Smart Controller.
4. Set the desired minimum speed of the fan.
5. Set the desired temperature.

Wichtiger Hinweis

• Do not install the temperature sensor directly in the fan's airflow. This is important to ensure reliable operation.

• Connecting fans that exceed the power limit of 5A/1000Watt will cause permanent damage to the device.

• We do not accept any liability for damage or risk resulting from improper use or use that deviates from the product specification.
